Introducing the CurioHS

Parallel headspace extraction. Multiple sorbent. Your instruments. Anywhere.

The CurioHS is the first planar, parallel, cartridge-based headspace extraction platform. Process dozens of samples at once, with the sorbent chemistry you choose, and analyze using the platform of your choice. It makes work at the bench more efficient, and testing in the field or at the receiving dock practical. Available now for early-access partners, with complimentary method development to move an existing method onto the CurioHS.

Request early access
Specification Sheet - Coming Soon

Our product

The CurioHS Up Close

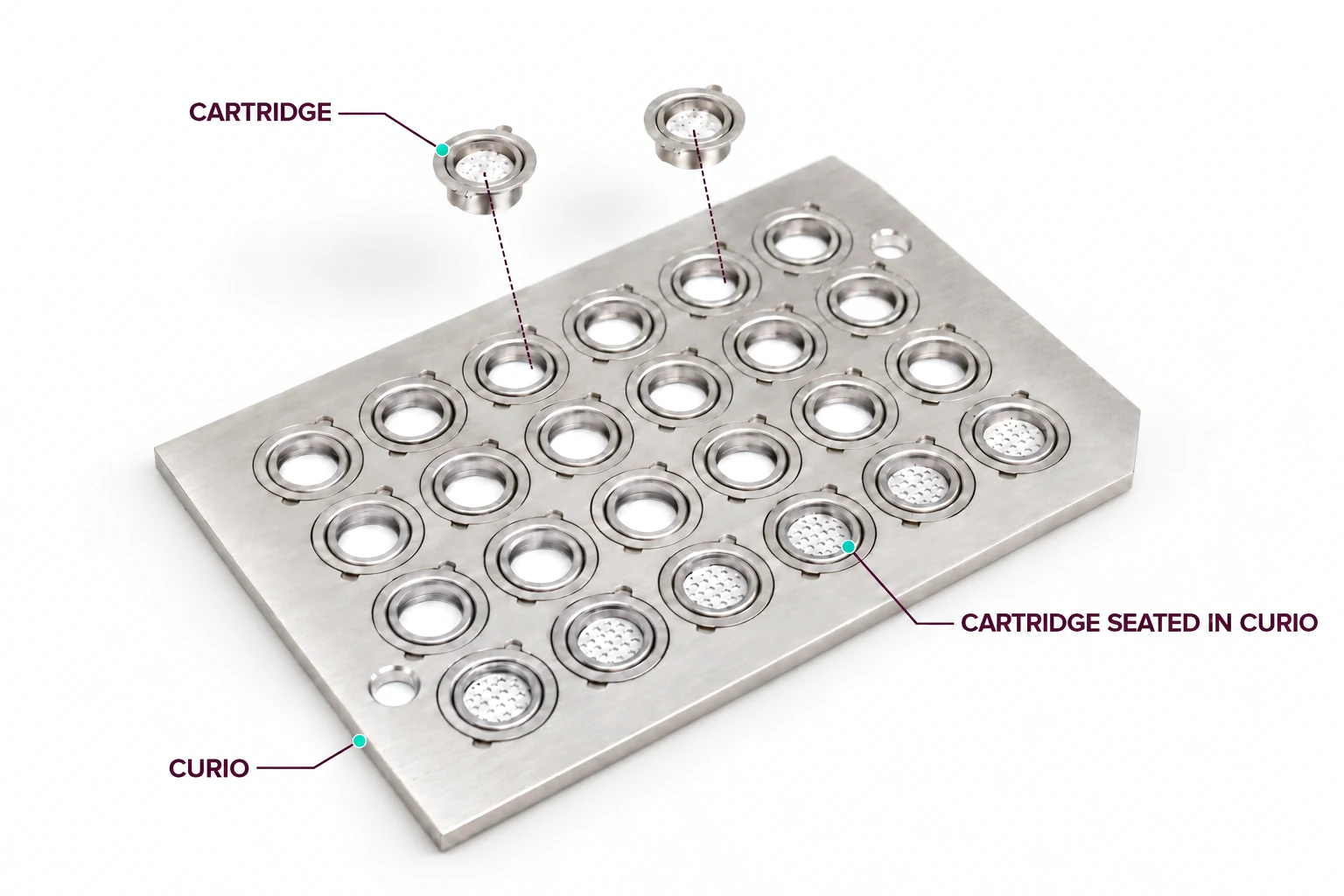

Curio HS plate with silver seats and two floating cartridges, labeled Cartridge, Cartridge seated in Curio, and Curio

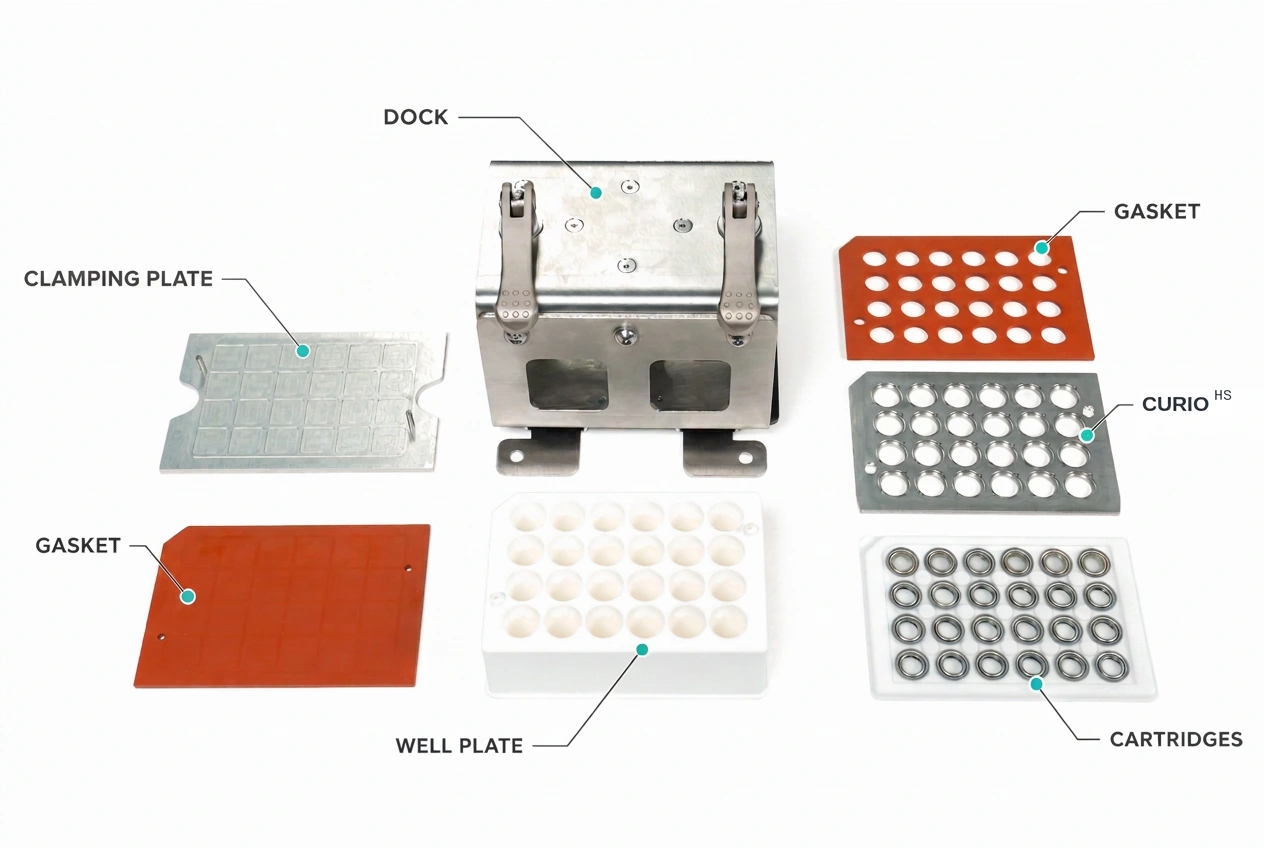

Curio HS components laid out: dock, clamping plate, gasket, well plate, Curio HS, and cartridges

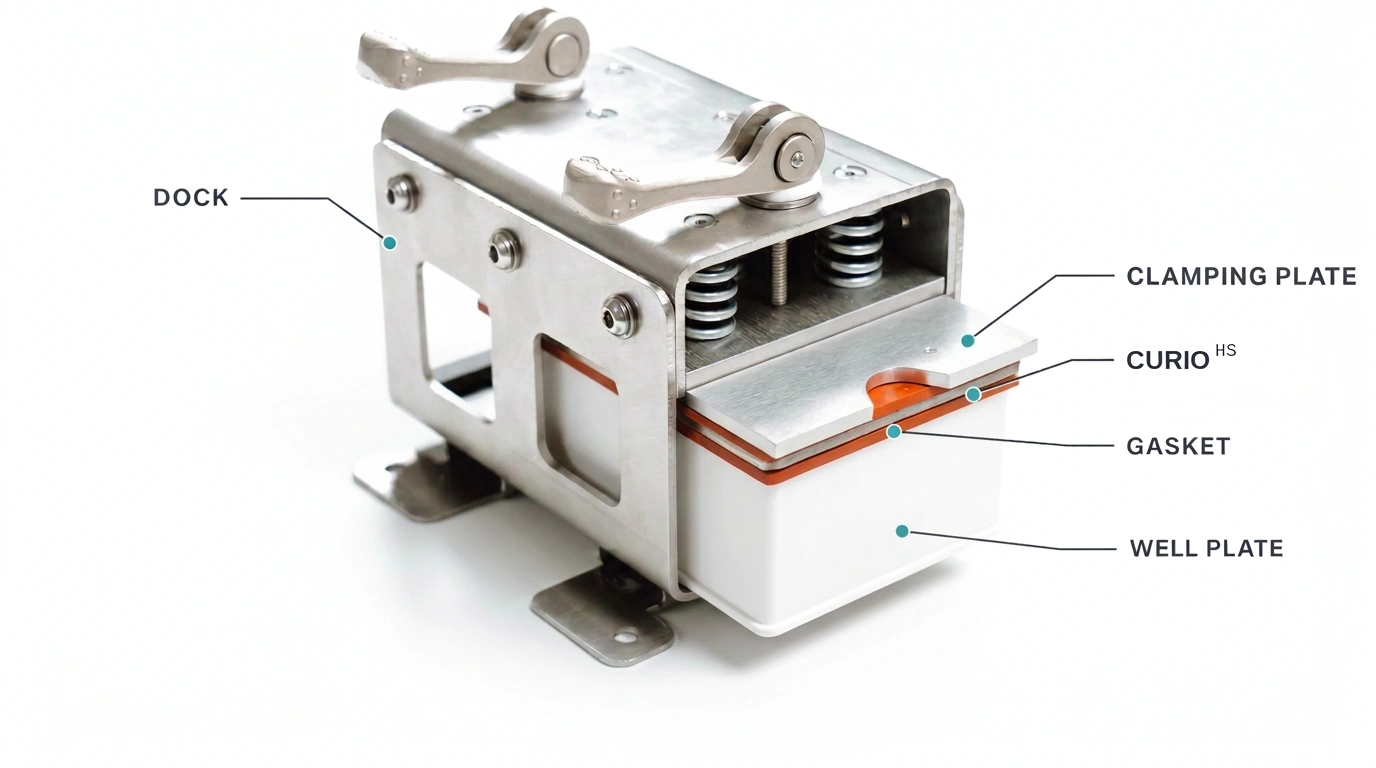

Assembled Curio HS: dock, clamping plate, Curio HS, gasket, and well plate

Here's How Trace Testing Becomes Your Competitive Advantage

A modular, parallelized extraction system designed for field or lab use built to handle volatile and semi-volatile compounds with speed and precision.

  • Parallel headspace extraction, in the field or at the bench
  • Interchangeable low-cost cartridges
  • Rugged plates and cartridges, in the field or the lab
  • Compatible with GC, GC-MS, LC-MS, HPLC, DART-MS, and more

In minutes, Quantera captures analytes on compact cartridges that can be shipped, stored, or analyzed right away. Sample preparation no longer has to happen where the instrument is.

Request Early Access

How it works

A gloved hand drawing a sample into a pipette beside a white multiwell sample plate
1

Load

Place your samples, solid or liquid, into Quantera's rugged multiwell plate, built on the standard plate footprint. In the lab or in the field.

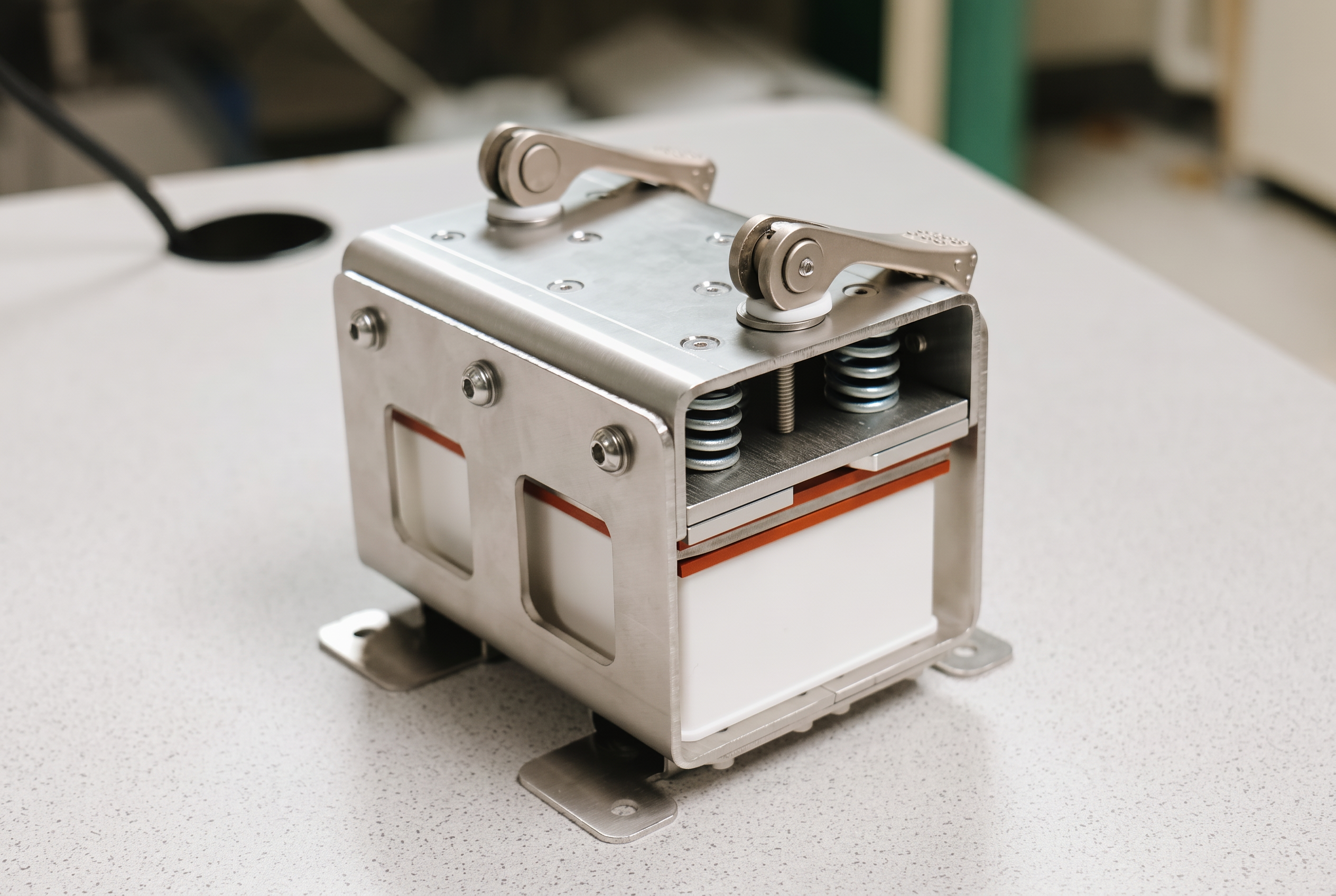

The Curio HS extraction device with its clamped manifold sealed over the well plate
2

Capture

Seal the cartridge array over the plate. Use your choice of sorbent cartridge.Incubate in parallel.

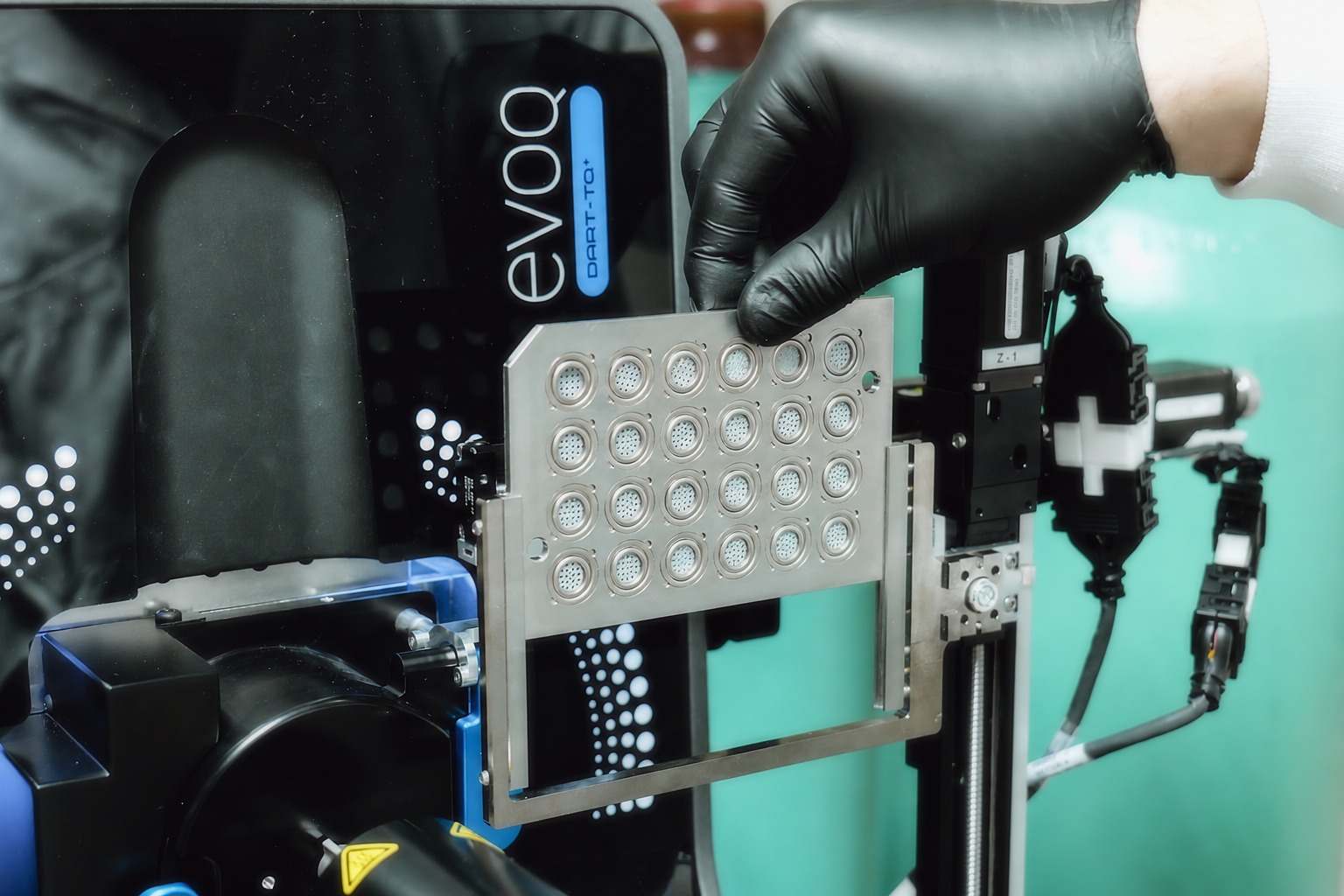

A gloved hand holding the loaded cartridge array at a DART-MS instrument ready for analysis
3

Analyze

Take the loaded cartridges to your instrument, store them, or ship to a contract lab.

Ideal for testing volatile and semi-volatile compounds

The CurioHS is optimized for

  • aroma and flavor compounds
  • terpenes
  • smoke-taint markers (guaiacol, 4-methylguaiacol and related volatile phenols)
  • off-aromas such as 2,4,6-TCA, fermentation and spoilage markers
  • residual solvents
  • fumigants
  • BTEX
  • furan
  • packaging migrants
  • and more.

CurioHS at a glance

Extraction mode
Headspace (volatile and semi-volatile compounds)
Format
Quantera multiwell plate (standard footprint) on a rugged manifold; 24 samples per plate
Throughput
Up to 60x versus one-at-a-time extraction when paired with DART-MS
Prep time
Under two minutes per sample
Sorbents
Interchangeable cartridges; conventional polymers and advanced chemistries
Sample stability
Captured analytes can be stored and shipped on the cartridge; hold time depends on analyte class and sorbent
Analysis
GC-MS, LC-MS, and HPLC by standard injection; DART-MS by direct introduction
Hardware
CurioHS extraction device, dock, well plates, gaskets, single-use cartridges
Use
At the lab bench or in the field.
Origin
Developed at Cornell University exclusive license to the Cornell patent portfolio
Specification Sheet - Coming Soon
